- Model – VUE PRO 336 13mm 9Hz
- Lens – 13mm with 25° x 19° FOV
- Sensor – Uncooled VOx Microbolometer
- Resolution – 336 x 256
- Full Frame Rate – 7.5 Hz (NTSC); 8.3 Hz (PAL)

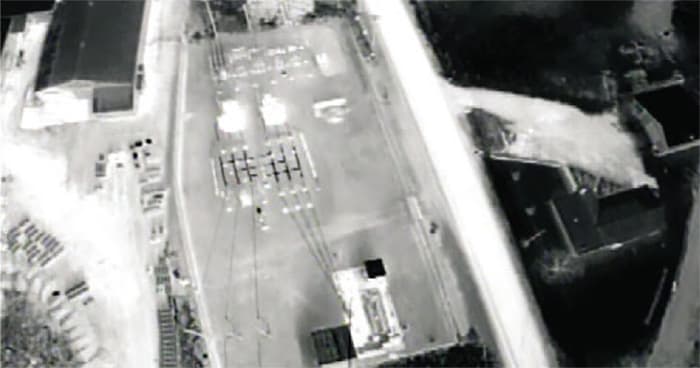

Designed for professional use, FLIR Vue Pro is more than a thermal camera, it is a thermal measurement instrument and data recorder that adds tremendous value to your sUAS operations and services. Delivering industry-leading thermal imaging quality and affordability, the Vue Pro is perfect for airborne solar panel inspection, building inspection, livestock management, natural resource management and protection, public safety, and search and rescue.
Affordable Thermal Imaging and On-board Data Recording
Record digital video and still imagery to a removable micro-SD card, eliminating data transmission loss.
- Simple power-in/video-out interface over 10-pin mini-USB connector
- Image settings optimized for airborne operations
- Record real-time thermal videos in MOV format
- Aircraft flight information is saved in each still image
MAVLink Integration & PWM Controls
In addition to MAVLink compatibility for image geotagging, the accessory port allows remote in-flight camera function control.
- Multiple recording options including flight data in each image
- Mobile app allows for PWM configurations in the field
- MAVLink integration with convenient RS-232 connection
Flexible, Powerful Camera Control and Configurations Options
Easy configuration with the FLIR UAS app lets pilots set color palettes and image optimization features.
- Control selectable camera functions with PWM inputs – imagery controls, recording start/stop, and still image capture
- Vue Pro R saves Radiometric JPEGs with temperature data embedded in every pixel
- Vue Pro R saves still images as Radiometric JPEGs, or 14-bit TIFF formats
Optional Power & HDMI Video Module
The Optional Power & HDMI Video Module makes the Vue Pro R easier to integrate than ever.
- 10-pin mini-USB connector accepts a wider input power range, provides reverse polarity protection, still provides analog video output and access to the camera’s on-board storage
- The micro-HDMI connector outputs HDMI video for live digital video downlink systems like DJI Lightbridge and 3DR Solo
In The Box
- Vue Pro Camera
- Bench Cable
- Accessory Cable
- MicroSD card
Manuals/Guides
Manuals
Spec Sheets
Manufacturer Specs
| Overview | |
| Precision Mounting Holes | Two M2x0.4 on each of two sides & bottom One 1/4-20 threaded hole on top |
| Size | 2.26″ x 1.75″ (including lens) |
| Spectral Band | 7.5 – 13.5μm |
| Thermal Imager | Uncooled VOx Microbolometer |
| Weight | 3.25 – 4 oz (Configuration Dependant) |
| Zoom | Yes – Adjustable in App and via PWM |
| Connections & Communications | |
| Analog Video Output | Yes |
| Environmental & Approvals | |
| Non-Operating Temperature Range | -55°C to +95°C |
| Operating Temperature Range | -20°C to +50°C |
| Operational Altitude | +40,000 feet |
| Imaging & Optical | |
| Color Palettes | Yes – Adjustable in App and via PWM |
| Full Frame Rate | 7.5 Hz (NTSC): 8:3 Hz (PAL) |
| Image Optimization for sUAS | Yes |
| Invertable Image | Yes – Adjustable in App |
| Lens Options | 13 mm: 25° x 19° |
| Lens Options [FOV for NTSC Analog OUtput] | 13 mm: 24° x 18° |
| Scene Preset & Image Processing | Yes – Adjustable in App |
| Sensor Resolution | 336 x 256 |
| Optional Power & HDMI Video Module | |
| HDMI Output | 1280×720 @ 50hz, 60hz |
| Input Power Range | 5 VDC – 28 VDC |
| Reverse Polarity Protection | Yes |
| Performance | |
| Measurement Accuracy | +/-5°C or 5% of reading |
| Power | |
| Input Voltage | 4.8-6.0 VDC |
| Power Dissipation [peek] | 2.1 W (3.9W) |
Tech Specs
| Thermal Imagers/Building and Industrial Thermal Imagers Template | |
|---|---|
| Detector Size | 336 x 256 Sensor |
| Image Frequency | 9 Hz |
| Field of View | 25×19 Degrees |
| Video Output | Yes |
| Focus | Adjustable |
| Video Recording | Yes |
| Intrinsically Safe | No |
| Test Equipment General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | This covers evaluation and repair or replacement of nonconforming components. |
| Interfaces I/O | Analog Output, Bluetooth, USB |
| Storage | Micro SD |
| Product Weight | 0.25 LBS |
| Product Height | 1.75 IN |
| Product Length | 2.26 IN |
| Product Width | 1.75 IN |
| Shipping Weight | 1 LBS |
| Data Logging | Yes |
| ECCN Number | 6A993.a |
