FLIR VUE PRO Radiometric, 336, 9mm, 9Hz
$3,349.00 $3,149.00 Add to cart
Sale!

FLIR VUE PRO Radiometric, 336, 9mm, 9Hz

$3,149.00

-6%

FREE Shipping on ALL USA Orders!

We Offer Financing – No Credit Check!

30 Days Easy Returns

Most Items Ship in 7-10 Business Days

Need Help? Call Us: 844-421-6581

  • Model – VUE PRO R 336 9mm 9Hz
  • Lens – 9mm with 35° x 27° FOV
  • Sensor – Uncooled VOx Microbolometer
  • Resolution – 336 x 256
  • Full Frame Rate – 7.5 Hz (NTSC); 8.3 Hz (PAL)

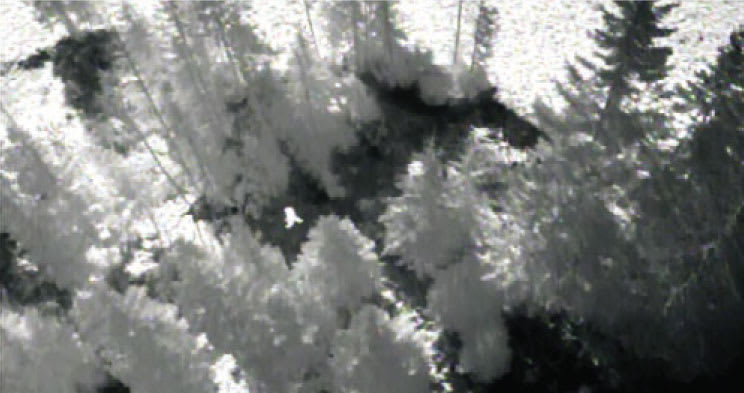

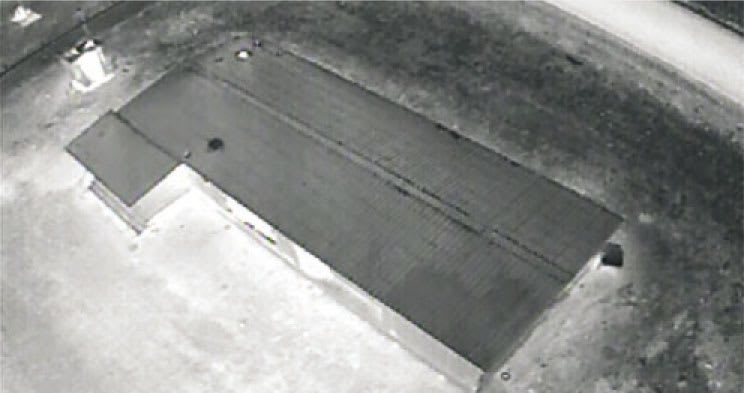

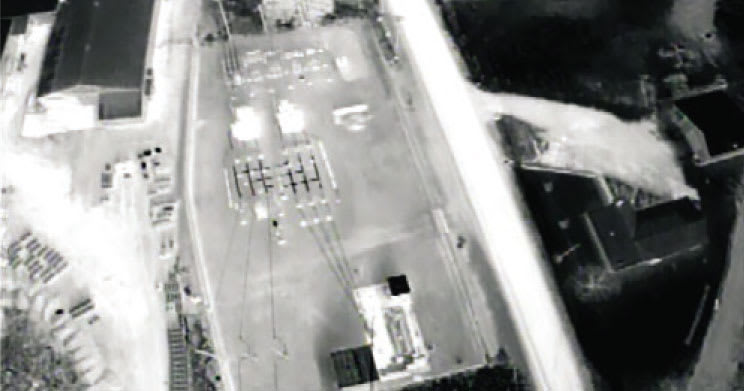

The Vue Pro R gives drone operators and certified thermographers the power to gather accurate, non-contact temperature measurements from an aerial perspective. Every still image the Vue Pro R saves contains accurate, calibrated temperature data embedded in every pixel, adding even more value to your sUAS operations and services than ever. Vue Pro R adds fully radiometric data-gathering to sUAS applications like building and roof inspections, power grid inspections, infrastructure analysis, natural resources management, livestock management, public safety, search and rescue.

Affordable Thermal Imaging and On-board Data Recording

Record digital video and still imagery to a removable micro-SD card, eliminating data transmission loss.

  • Simple power-in/video-out interface over 10-pin mini-USB connector
  • Image settings optimized for airborne operations
  • Record real-time thermal videos in MOV format
  • Aircraft flight information is saved in each still image
MAVLink Integration & PWM Controls

In addition to MAVLink compatibility for image geotagging, the accessory port allows remote in-flight camera function control.

  • Multiple recording options including flight data in each image
  • Mobile app allows for PWM configurations in the field
  • MAVLink integration with convenient RS-232 connection
Flexible, Powerful Camera Control and Configurations Options

Easy configuration with the FLIR UAS app lets pilots set color palettes and image optimization features.

  • Control selectable camera functions with PWM inputs – imagery controls, recording start/stop, and still image capture
  • Vue Pro R saves Radiometric JPEGs with temperature data embedded in every pixel
  • Vue Pro R saves still images as Radiometric JPEGs or 14-bit TIFF formats
Optional Power & HDMI Video Module

The Optional Power & HDMI Video Module makes the Vue Pro R easier to integrate than ever.

  • 10-pin mini-USB connector accepts a wider input power range, provides reverse polarity protection, still provides analog video output and access to the camera’s on-board storage
  • The micro-HDMI connector outputs HDMI video for live digital video downlink systems like DJI Lightbridge and 3DR Solo

In The Box

  • Vue Pro R Camera
  • Bench Cable
  • Accessory Cable
  • MicroSD card

Manuals/Guides

Manuals

Spec Sheets

Manufacturer Specs

FLIR VUE PRO R 336 9mm 9Hz Specifications
OVERVIEW
Precision Mounting HolesTwo M2x0.4 on each of two sides & bottom One 1/4-20 threaded hole on top
Size2.26″ x 1.75″ (including lens)
Spectral Band7.5 – 13.5 µm
Thermal ImagerUncooled VOx Microbolometer
Weight3.25 – 4 oz (Configuration Dependant)
ZoomYes – Adjustable in App and via PWM
CONNECTIONS & COMMUNICATIONS
Analog Video OutputYes
ENVIRONMENTAL & APPROVALS
Non-Operating Temperature Range-55°C to +95°C
Operating Temperature Range-20°C to +50°C
Operational Altitude+40,000 feet
IMAGING & OPTICAL
Color PalettesYes – Adjustable in App and via PWM
Full Frame Rate7.5 Hz (NTSC); 8.3 Hz (PAL)
Image Optimization for sUASYes
Invertable ImageYes – Adjustable in App
Lens Options9 mm; 35° x 27°
Lens Options [FOV for NTSC Analog Output]9 mm; 34° x 26°
Scene Presets & Image ProcessingYes – Adjustable in App
Sensor Resolution336 x 256
OPTIONAL POWER & HDMI VIDEO MODULE
HDMI Output1280×720 @ 50hz, 60hz
Input Power Range5 VDC – 28 VDC
Reverse Polarity ProtectionYes
PERFORMANCE
Measurement Accuracy+/-5°C or 5% of reading
POWER
Input Voltage4.8-6.0 VDC
Power Dissipation [peak]2.1 W (3.9 W)

Tech Specs

Thermal Imagers/Building and Industrial Thermal Imagers Template
Detector Size336 x 256 Sensor
Image Frequency9 Hz
Video OutputYes
FocusAdjustable
Video RecordingYes
Accuracy+/-5°C or 5% of reading
Intrinsically SafeNo
Test Equipment General Attributes
Unique FeaturesVue Pro R adds fully radiometric data-gathering
Warranty1 YEARS
Warranty DetailsThis covers evaluation and repair or replacement of nonconforming components.
Interfaces I/OAnalog Output, Bluetooth, USB
StorageMicro SD
Product Weight0.25 LBS
Product Height1.75 IN
Product Length2.26 IN
Product Width1.75 IN
Shipping Weight0.28 LBS
Data LoggingYes
ECCN Number6A993.a

Additional information

MPN

436-0020-00S
